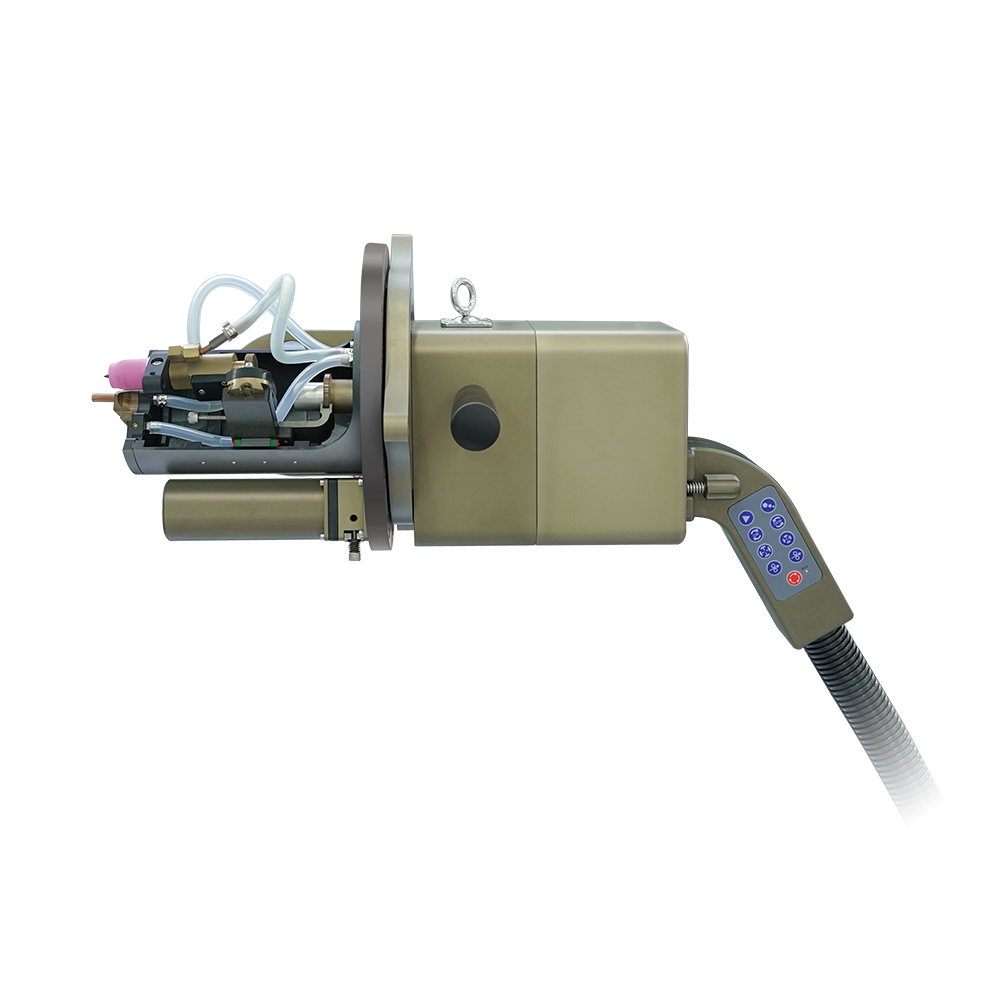

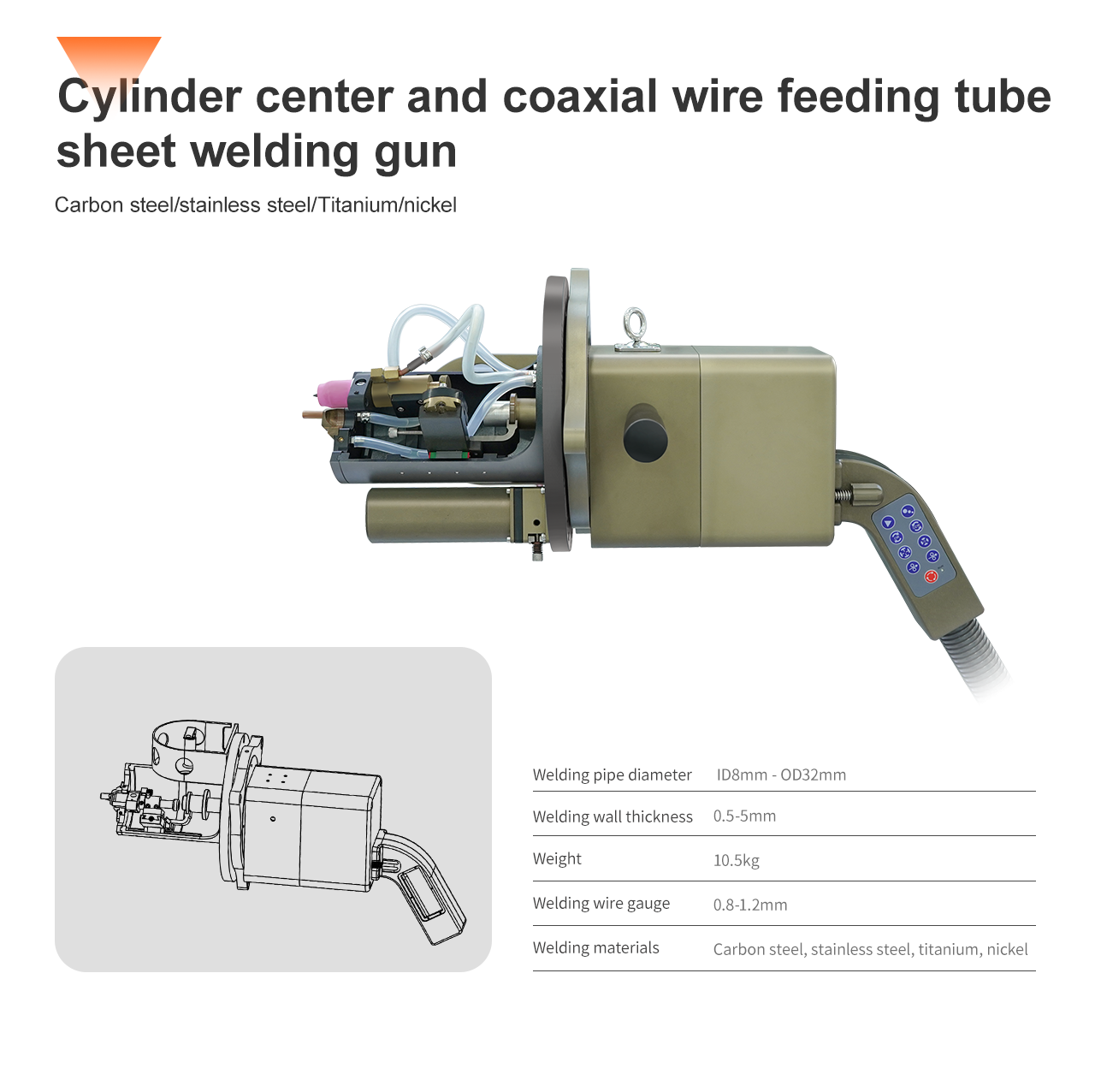

TBS-65 Tube-to-Tube sheet Welding Head
TBS-65 is a special welding head designed and developed for all-position automatic welding of various tube sheets. It adopts a new rack-type copper sleeve design. After adjusting the position of the tungsten needle, the copper sleeve is directly inserted into the pipe, simplifying the welder's operation difficulty.

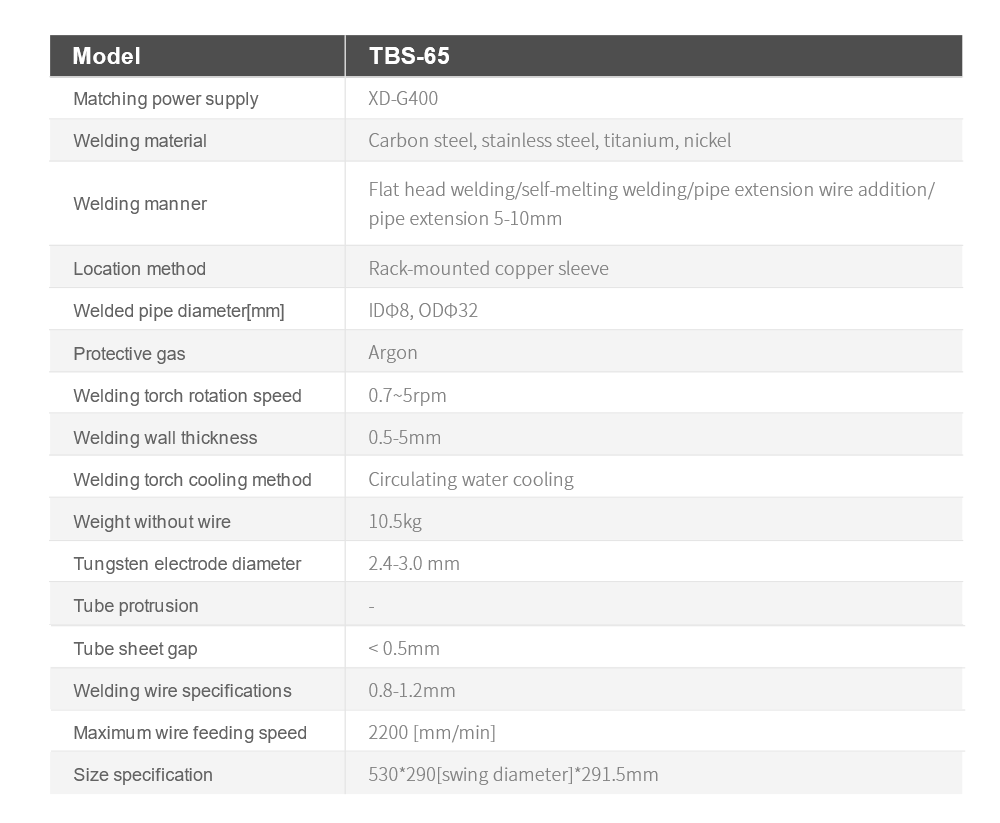

Welding material: Carbon steel, stainless steel, titanium, nickel, etc.
Welding wall thickness: ≤5mm
Welding pipe diameter:8mm-32mm
Welding form: Butt joint
