Split-Type Orbital Welding Head System
Split type orbital welding guns is suitable for semiconductor industry, clean energy industy, water treatment industry, life science industry, food and beverage industry, it use of split type design, according to the thickness of the welding pipe and different site conditions, there are two different design schemes for you to choose, the delivery time is 10 days after you provide the pipe diameter size.

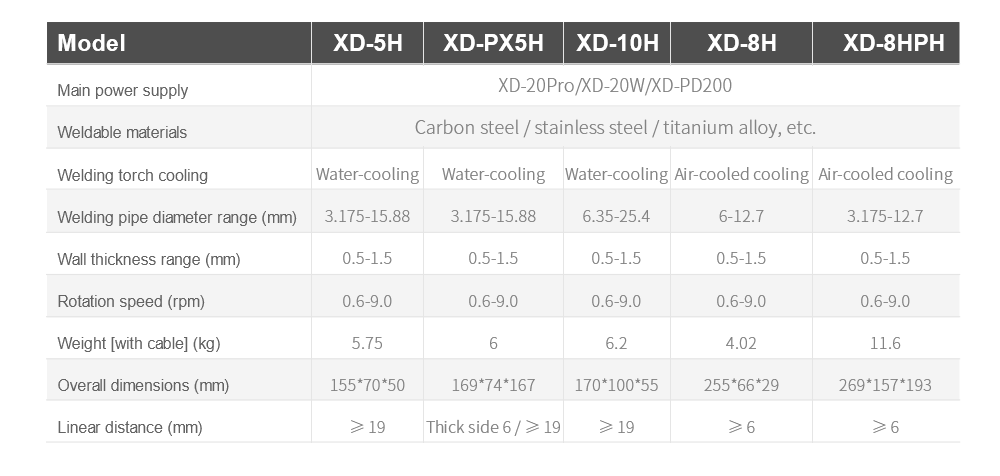

Welding pipe diameter: 6mm~12.7mm
Welding form: butt joint
Welding wall thickness: 0.5mm~1.5mm
Delivery time: 10 days

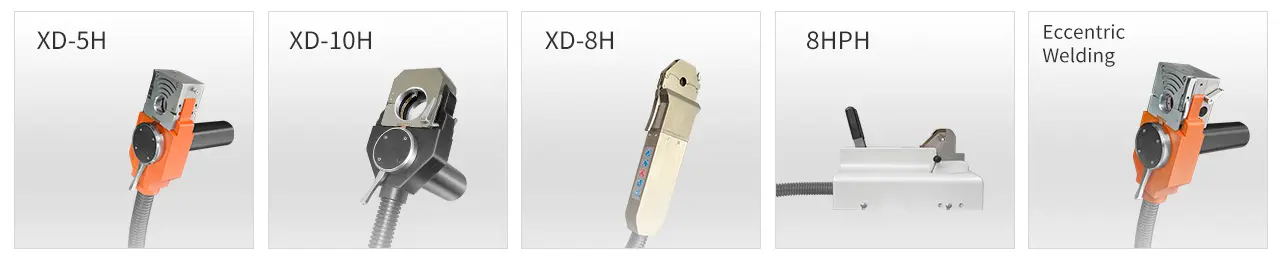

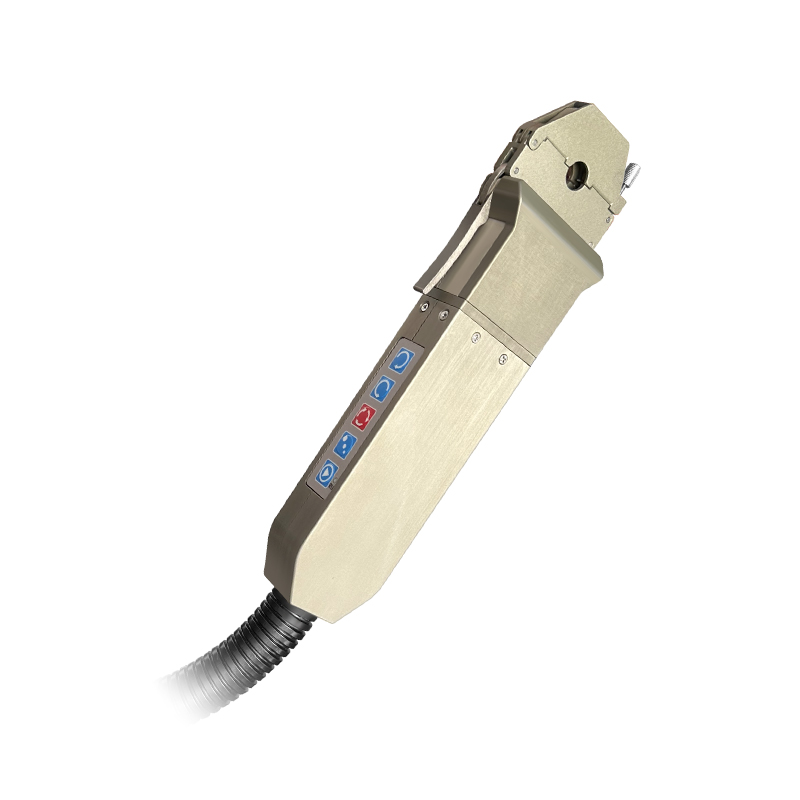

8H micro welding gun is designed for narrow space welding
Weld heads have optical speed control wihthout the need for a tachometer or calibration
